Database Setup
In this section, you'll create your first Cloudflare D1 database, configure it for your application, and set up the database schema using migrations. By the end of this guide, you'll have a fully configured database ready to store your notes.

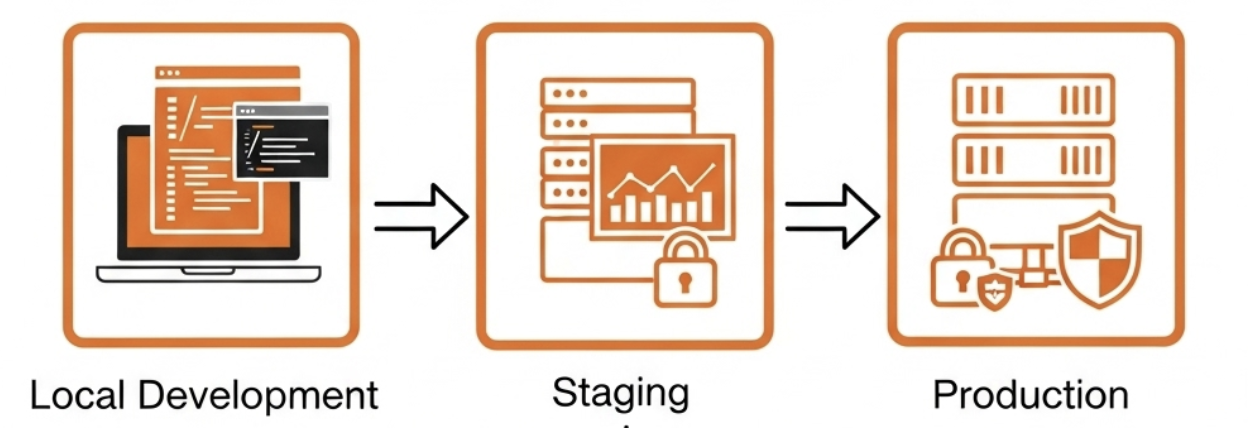

Understanding D1 Database Architecture
What is a D1 Database? D1 is Cloudflare's serverless SQL database built on SQLite. It provides:
- Global distribution across Cloudflare's edge network
- Zero-configuration scaling
- SQL compatibility with SQLite syntax
- Built-in backup and replication
Why Use Migrations? Database migrations are version-controlled scripts that:
- Track changes to your database schema over time
- Ensure consistent database structure across environments
- Allow safe rollbacks if needed
- Enable collaborative database development
Step 1: Create Your D1 Database
Navigate to Your Project
# Ensure you're in the backend project directory
cd ~/projects/blazenote-backend
# Verify you're in the correct location
pwd
# Should show: .../blazenote-backend
Create the Database
Run the database creation command:
wrangler d1 create blazenote
What this command does:
- Creates a new D1 database named "blazenote" in your Cloudflare account
- Generates a unique database ID for your database
- Sets up the database in Cloudflare's global network

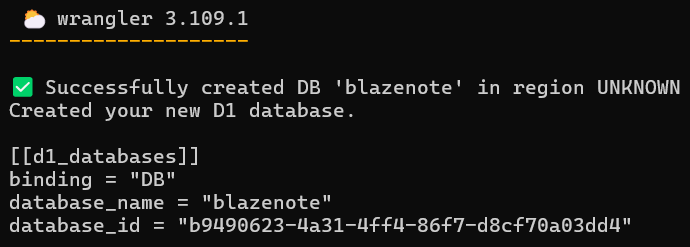

Expected output:
⛅️ wrangler 3.109.2
--------------------
Successfully created DB 'blazenote' in region WNAM
Created your new D1 database.
[[d1_databases]]
binding = "DB"
database_name = "blazenote"
database_id = "a1b2c3d4-e5f6-7890-1234-567890abcdef"
⚠️ Important: Save the database_id value! You'll need it in the next step.

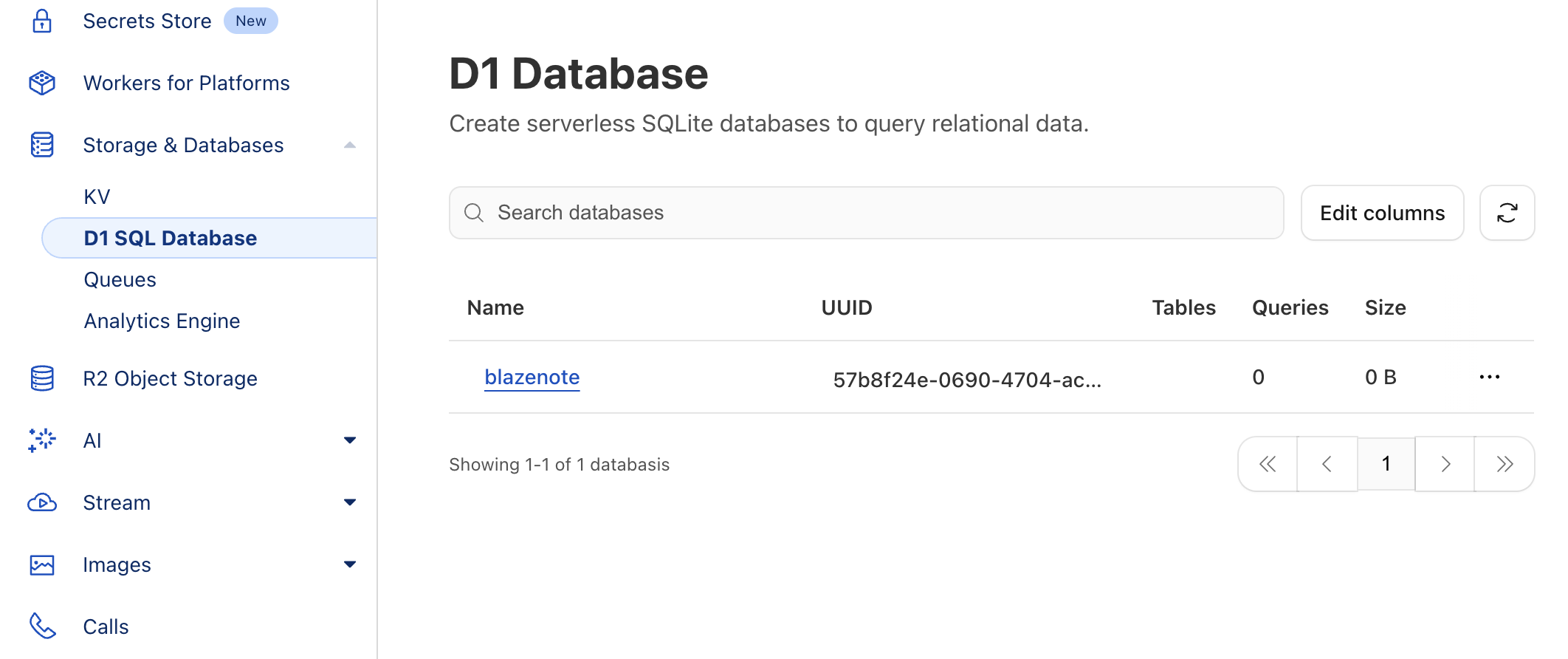

Verify Database Creation
Check your Cloudflare dashboard:
- Go to Cloudflare Dashboard
- Navigate to Workers & Pages in the left sidebar
- Click on the D1 SQL Database tab
- You should see your new "blazenote" database listed
Step 2: Configure Wrangler for D1 Access
Understand Wrangler Configuration
What is wrangler.toml? This file configures how your Worker connects to Cloudflare services, including your D1 database.
Update wrangler.toml
Open the configuration file:
Use your code editor to navigate to the wrangler.toml file in your project directory.
Find the commented D1 configuration section:
# [[d1_databases]]
# binding = "DB"
# database_name = "blazenote"
# database_id = "<your-database-id>"
# migrations_dir = "./migrations"
Uncomment and update the section:
[[d1_databases]]
binding = "DB"
database_name = "blazenote"
database_id = "a1b2c3d4-e5f6-7890-1234-567890abcdef"
migrations_dir = "./migrations"
⚠️ Replace the database_id: Use the actual database_id from your Step 1 output, not the example above!
Configuration explained:
binding = "DB": The variable name you'll use in your code to access the databasedatabase_name = "blazenote": The name of your databasedatabase_id: The unique identifier for your specific databasemigrations_dir: Where Wrangler will look for migration files
Save Your Changes
Save the file (Ctrl+S or Cmd+S)
Step 3: Create Database Migrations
Understanding Migrations
What are migrations? Migrations are SQL scripts that define your database structure:
- Create tables
- Add or modify columns
- Create indexes
- Set up relationships between tables
Create Your First Migration
Generate a migration file:
wrangler d1 migrations create blazenote initial

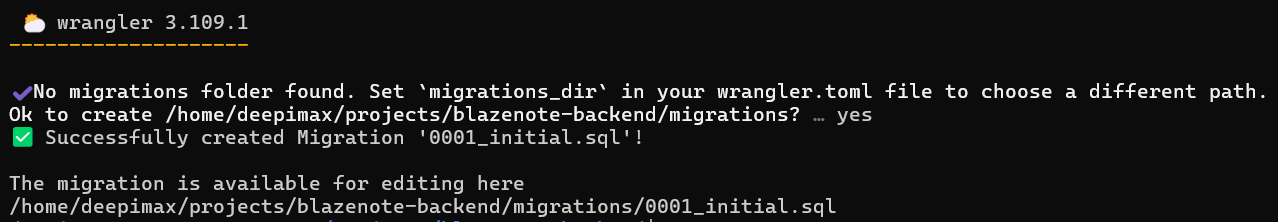

Expected output:
Successfully created Migration '0001_initial.sql'!
The migration is available for editing here
/blazenote-backend/migrations/0001_initial.sql

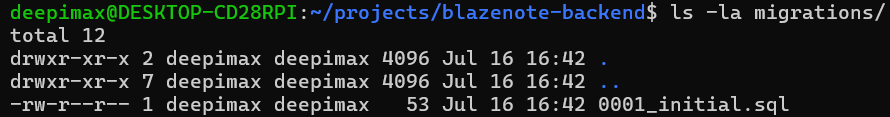

Verify Migration Directory
# Check that the migrations directory was created
ls -la migrations/
# Should show: 0001_initial.sql
⚠️ Critical: Migration Files Cannot Be Modified After Application
Once you apply a migration file (even an empty one), D1 marks it as applied and will not pick up any subsequent changes to that file. If you accidentally apply an empty migration file, you cannot edit it and reapply - you must create a new migration file instead.
Best Practice: Always verify your migration file content BEFORE applying it. If you make a mistake:
- Do NOT edit the already-applied migration file
- Create a new migration with:
wrangler d1 migrations create blazenote fix_schema - Add your corrections in the new migration file
Design Your Database Schema
Open the migration file:
code migrations/0001_initial.sql
Replace the content with our complete schema:
-- Migration number: 0001 2025-01-26T03:52:41.446Z
-- UUID7 Generation View
-- This creates a view that generates UUID7 identifiers for our records
DROP VIEW IF EXISTS uuid7;
CREATE VIEW uuid7 AS
WITH unixtime AS (
SELECT CAST((STRFTIME('%s') * 1000) + ((STRFTIME('%f') * 1000) % 1000) AS INTEGER) AS time
)
SELECT FORMAT('%08x-%04x-%04x-%04x-%012x',
(select time from unixtime) >> 16,
(select time from unixtime) & 0xffff,
ABS(RANDOM()) % 0x0fff + 0x7000,
ABS(RANDOM()) % 0x3fff + 0x8000,
ABS(RANDOM()) >> 16) AS next;
-- Notes Table
-- Stores the main note data with title and description
CREATE TABLE note (
id TEXT PRIMARY KEY, -- UUID as a string
title TEXT NOT NULL, -- Title of the note
description TEXT, -- Description of the note (can be NULL)
created_at INTEGER DEFAULT (strftime('%s', 'now')), -- Unix epoch timestamp for creation
updated_at INTEGER DEFAULT (strftime('%s', 'now')) -- Unix epoch timestamp for last update
);
-- Update Trigger for Notes
-- Automatically updates the updated_at field when a note is modified
CREATE TRIGGER update_note_before_update
AFTER UPDATE ON note
FOR EACH ROW
BEGIN
UPDATE note SET updated_at = strftime('%s', 'now') WHERE id = OLD.id;
END;
-- Auto-ID Trigger for Notes
-- Automatically generates UUID7 for new notes if no ID is provided
DROP TRIGGER IF EXISTS trigger_after_insert_on_note;
CREATE TRIGGER trigger_after_insert_on_note
AFTER INSERT ON note WHEN NEW.id IS NULL
BEGIN
UPDATE note SET id = (SELECT next FROM uuid7) WHERE ROWID = NEW.ROWID;
END;
-- Files Table
-- Stores file attachments associated with notes
CREATE TABLE file (
id TEXT PRIMARY KEY, -- UUID as a string
note_id TEXT, -- Reference to note id
name TEXT NOT NULL, -- File name
created_at INTEGER DEFAULT (strftime('%s', 'now')), -- Unix epoch timestamp for creation
updated_at INTEGER DEFAULT (strftime('%s', 'now')), -- Unix epoch timestamp for last update
FOREIGN KEY (note_id) REFERENCES note(id) -- Foreign key relationship
);
-- Update Trigger for Files
-- Automatically updates the updated_at field when a file record is modified
CREATE TRIGGER update_file_before_update
AFTER UPDATE ON file
FOR EACH ROW
BEGIN
UPDATE file SET updated_at = strftime('%s', 'now') WHERE id = OLD.id;
END;
-- Auto-ID Trigger for Files
-- Automatically generates UUID7 for new files if no ID is provided
DROP TRIGGER IF EXISTS trigger_after_insert_on_file;
CREATE TRIGGER trigger_after_insert_on_file
AFTER INSERT ON file WHEN NEW.id IS NULL
BEGIN
UPDATE file SET id = (SELECT next FROM uuid7) WHERE ROWID = NEW.ROWID;
END;

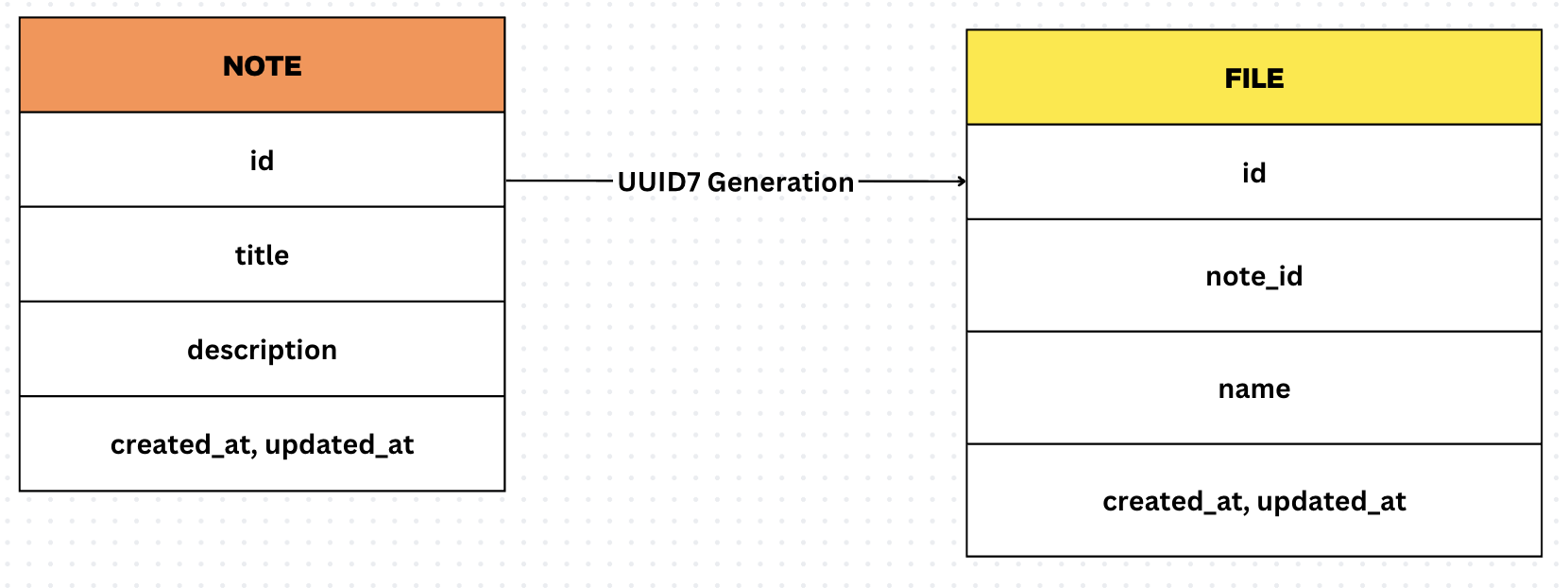

Understanding the Schema
Tables Created:
-
notetable: Stores your notesid: Unique identifier (UUID7)title: Note title (required)description: Note content (optional)created_at,updated_at: Timestamps
-
filetable: Stores file attachments (for future use)id: Unique identifier (UUID7)note_id: Links to the parent notename: File namecreated_at,updated_at: Timestamps
Special Features:
- UUID7 Generation: Automatic unique ID creation
- Automatic Timestamps: Created and updated times are managed automatically
- Foreign Key Relationships: Files are properly linked to notes
Step 4: Apply Database Migrations
Apply to Local Development Database
Run the migration locally:
wrangler d1 migrations apply blazenote
Expected output:
Migrations to be applied:
┌──────────────────┐
│ name │
├──────────────────┤
│ 0001_initial.sql │
└──────────────────┘
About to apply 1 migration(s)
Your database may not be available to serve requests during the migration, continue? (y/N)
Type y and press Enter to continue.
🚣 Executed 2 commands in 1.7551ms
┌───────────────────┬────────┐
│ name │ status │
├───────────────────┼────────┤
│ 0001_initial.sql │ │
└───────────────────┴────────┘
Apply to Remote Production Database
Run the migration on production:
wrangler d1 migrations apply blazenote --remote
Expected output:
Migrations to be applied:
┌──────────────────┐
│ name │
├──────────────────┤
│ 0001_initial.sql │
└──────────────────┘
About to apply 1 migration(s)
Your database may not be available to serve requests during the migration, continue? (y/N)
Type y and press Enter to continue.
🚣 Executed 2 commands in 1.7551ms
┌───────────────────┬────────┐
│ name │ status │
├───────────────────┼────────┤
│ 0001_initial.sql │ │
└───────────────────┴────────┘
Step 5: Verify Database Tables
Query Your Database Structure
Check local database:
wrangler d1 execute blazenote --command "SELECT name FROM sqlite_master WHERE type='table';"
Check remote database:
wrangler d1 execute blazenote --remote --command "SELECT name FROM sqlite_master WHERE type='table';"
Expected output for both:
┌─────────────────────┐
│ name │
├─────────────────────┤
│ d1_migrations │
│ note │
│ file │
└─────────────────────┘
Test Database Connectivity
Insert a test note:
wrangler d1 execute blazenote --command "INSERT INTO note (title, description) VALUES ('Test Note', 'This is a test note to verify database connectivity.');"
Query the test note:
wrangler d1 execute blazenote --command "SELECT * FROM note;"
Expected output:
┌──────────────────────────────────────┬───────────┬──────────────────────────────────────────────────────────┬────────────┬────────────┐
│ id │ title │ description │ created_at │ updated_at │
├──────────────────────────────────────┼───────────┼──────────────────────────────────────────────────────────┼────────────┼────────────┤
│ 01934d2e-4567-7890-abcd-ef1234567890 │ Test Note │ This is a test note to verify database connectivity. │ 1737891234 │ 1737891234 │
└──────────────────────────────────────┴───────────┴──────────────────────────────────────────────────────────┴────────────┴────────────┘
Clean Up Test Data
Remove the test note:
wrangler d1 execute blazenote --command "DELETE FROM note WHERE title = 'Test Note';"
Troubleshooting Common Issues
Details
Database Creation Fails
Issue: wrangler d1 create command fails
Solutions:
- Verify Wrangler authentication:
wrangler whoami - Check internet connection
- Ensure you're on a paid Cloudflare plan (D1 requires Workers Paid plan)
Migration Application Fails
Issue: Migration doesn't apply successfully Solutions:
- Check SQL syntax in migration file
- Ensure you're in the correct directory
- Verify database ID in
wrangler.tomlmatches creation output
Database Not Found
Issue: "Database not found" error Solutions:
- Double-check database ID in
wrangler.toml - Verify database exists in Cloudflare dashboard
- Ensure you're authenticated to the correct Cloudflare account
Permission Denied
Issue: "Permission denied" or authentication errors Solutions:
- Re-authenticate Wrangler:
wrangler login - Check your Cloudflare account has D1 access
- Verify you're using the correct Cloudflare account
Migration Changes Not Applied
Issue: Modified an existing migration file but changes don't appear in database Solutions:
- D1 tracks which migrations have been applied and will NOT reapply them
- Once a migration is applied, editing it has no effect
- Solution: Create a new migration file with your changes:
wrangler d1 migrations create blazenote fix_schema - Add your schema changes to the new migration file
- Apply the new migration with
wrangler d1 migrations apply blazenote
